Gazebo sizing : The quoted size is the external dimension of the posts.

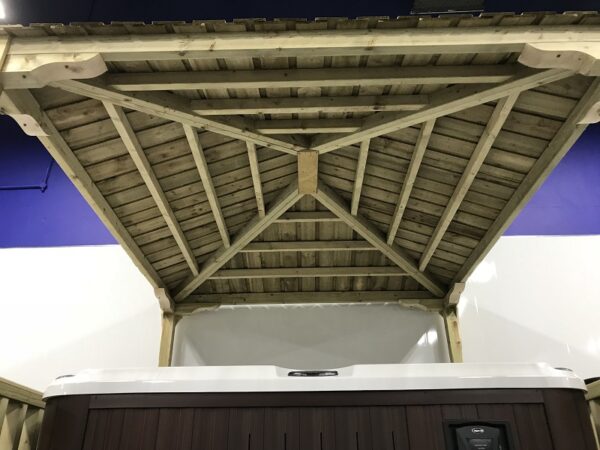

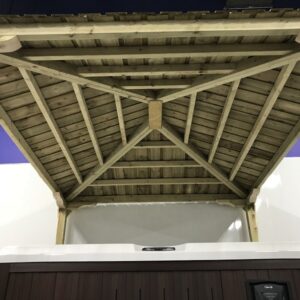

Timber dimensions: Main roof frame: 100 x 50mm (doubled up to 100mm x 100mm on the hips)
Rafters: 75 x 50mm
Uprights: 90 x 90mm planed smooth featuring chamfered edges. They are extra long at 2.4m so can be buried in the ground or shortened to around 2.1m and bolted down with our post anchors.

Roof Options:
Professional felt shingles. Benefits: Durability, Lightweight, Versatility, Ease of fixing, Attractive appearance, Virtually maintenance free, BBA Certification 15 year material guarantee.

Vertical timber roof: This unique roof covering uses fully pressure treated timber to ensure a very long lasting roof. The 10 – 12mm thick boards which run vertically will give your wooden gazebo a contemporary feel which looks as good on the inside as it does on the outside. The two layers of timber have a very generous overlap to keep the roof covering as waterproof as possible. The specially machined ridges finish off this high quality roof covering.

Bolt down anchors: These fully galvanised metal post holders fit our specially machined posts perfectly. They can be fastened to decking, concrete or stone paving with appropriate fixings (not supplied).
